Mechanical data:
| Solar cell array ： | 36（4X9） |
| Junction box： | solar junction box，IP67，2bypass diode |
| Output cable： | 2.5MM², cable length as standard+mc4 connector |
| Glass： | single，3.2mm tempered glass |

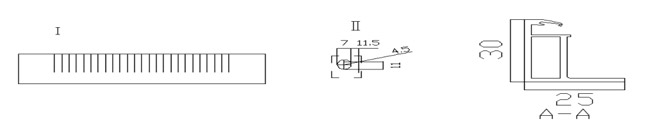

| Frame： | aluminum dioxide frame |
| Weight： | 6.5KG/6.8KG |
| Dimension： | 1000 x 670 x 30mm |
| Packing： | 2PCS/carton，paper carton |
| Remarks： | fully customized acceptable |

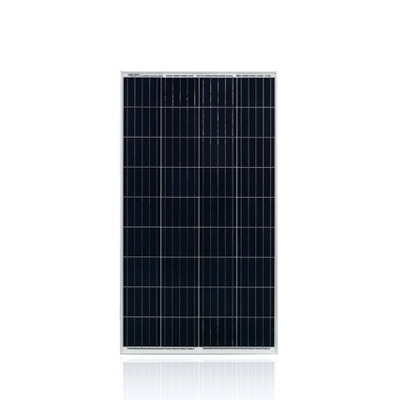

A smart design for the light and portable solar cell modules, which could be easily used in tiny area, such as yard lighting, room decoration, camping, fishing, sight seeing and so on, where there is need of small quantity power supply, there will be our products could be found. No matter where you are, only with sunlight, you will get power, the endless power.
Electrical data： STC：AM1.5 1000/m² 25C° peak power testing tolerance ±3%
| Pmax/W | 95 | 100 | 105 | 110 | 115 |
| Voc/V | 21.8 | 21.8 | 21.8 | 21.8 | 21.8 |
| Isc/A | 5.64 | 5.95 | 6.24 | 6.54 | 4.76 |
| Vmp/V | 18.2 | 18.2 | 18.2 | 18.2 | 18.2 |
| Imp/A | 5.22 | 5.5 | 5.77 | 6.05 | 6.32 |
| Eff.(%) | 14.2 | 15 | 15.7 | 16.5 | 17.2 |
