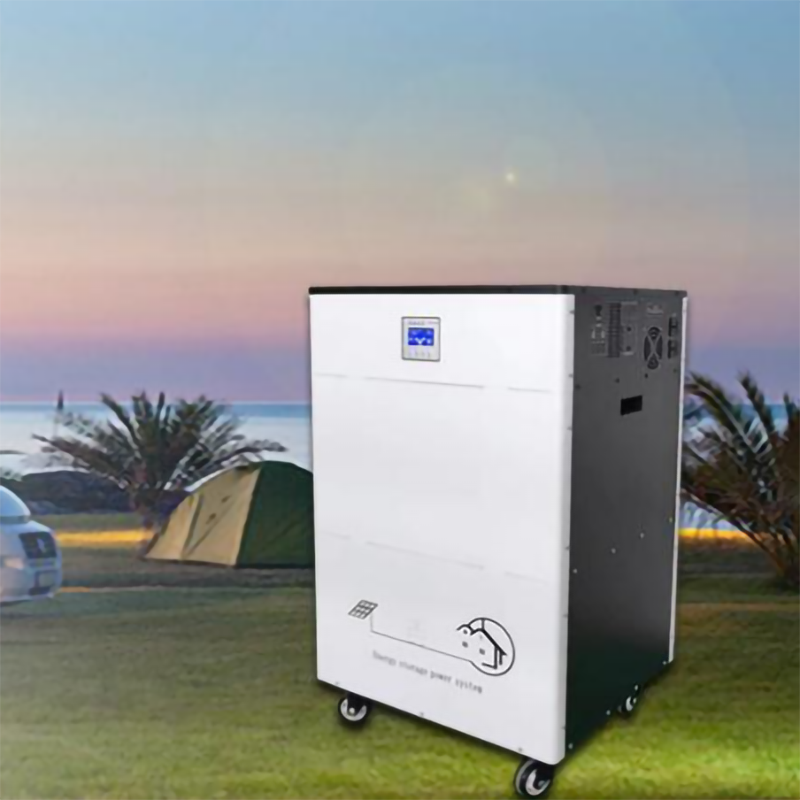

| Models | ESP5000-5120 | ESP5000-10240 |
| AC output power | 5000VA/5000W | 5000VA/5000W |
| Peak power(ms) | 12500VA | 12500VA |
| AC input | ||
| Input voltage | 165-265Vac±5% | |
| Input frequency | 45-65Hz | |
| EPS ac output | ||
| Output phase | L+N+PE | |
| Output voltage | 220V/230Vac±5% | |
| Output frequency | 50/60Hz±1%（Inverter mode） | |
| Output waveform | Pure sine wave | |
| Output power | 5000W | |
| PV charging&AC charging | ||
| Max pv input power | 3200W | 3200W |
| Max pv voltage(voc) | 150Vdc | 150Vdc |
| Optimal tracking voltage(vmp) | 65-110Vdc | 65-110Vdc |
| Max pv charging current | 60A | |
| Max ac charging current | 15A | |
| Battery cluster | ||
| Battery type | LiFePO4 | LiFePO4 |
| Battery voltage | 51.2V | 51.2V |
| Battery capacity | 5120WH | 10240WH |
| Other information | ||
| 5VUSB | Max 24W 5VUSB*3 QC3.0 | |
| 12VDC | 5521-12V3A*2 | |
| Conversion time | ≦4Ms | |
| Size(mm) | 610*550*650mm | 610*550*1010mm |
| Communication | RS485/WIFI/GPRS (Optional） | |
| Installation mode | floor mounted | |
| Ambient Temperature | -10℃-50℃ | |
Off-grid system Connection diagram
 |
Built-in LiFePO4 |
| Power frequency pure sine wave | |
| 5000W output power | |
| Solar inverter/ups | |
| Lightning surge protection | |
| Integrated power supply system |
ESP SYSTEM Application
- ●Household power supply system
- ●Electricity for fishing rafts
- ●Nomadic
- ●Impact load
- ●3P Air conditioner
